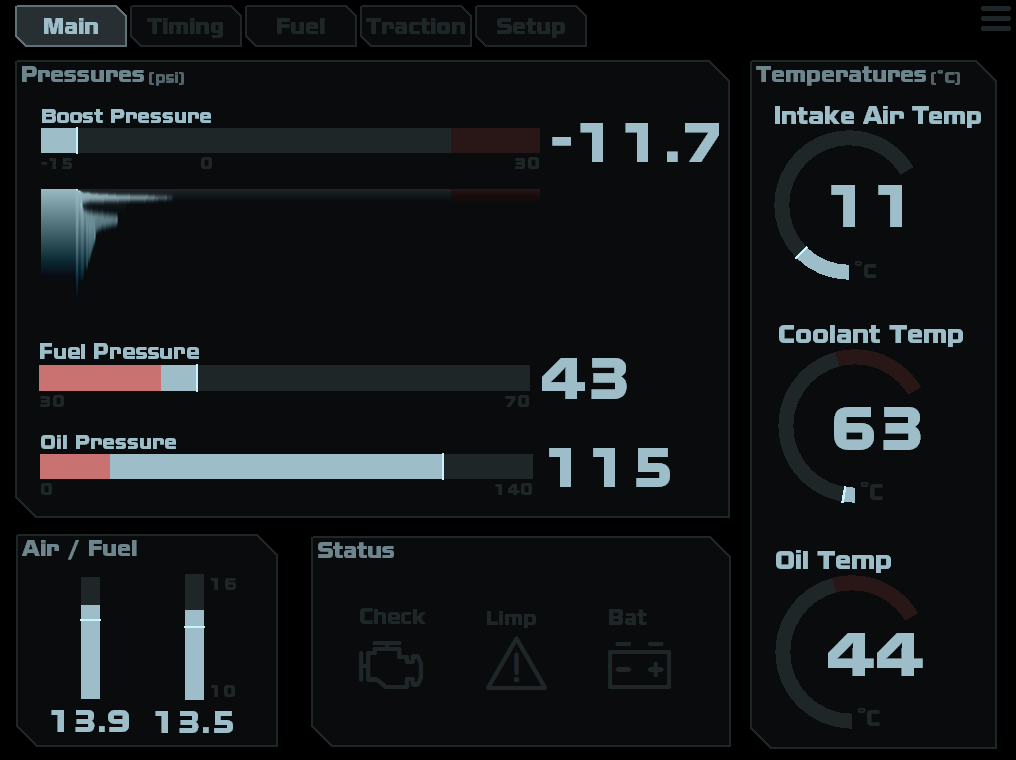

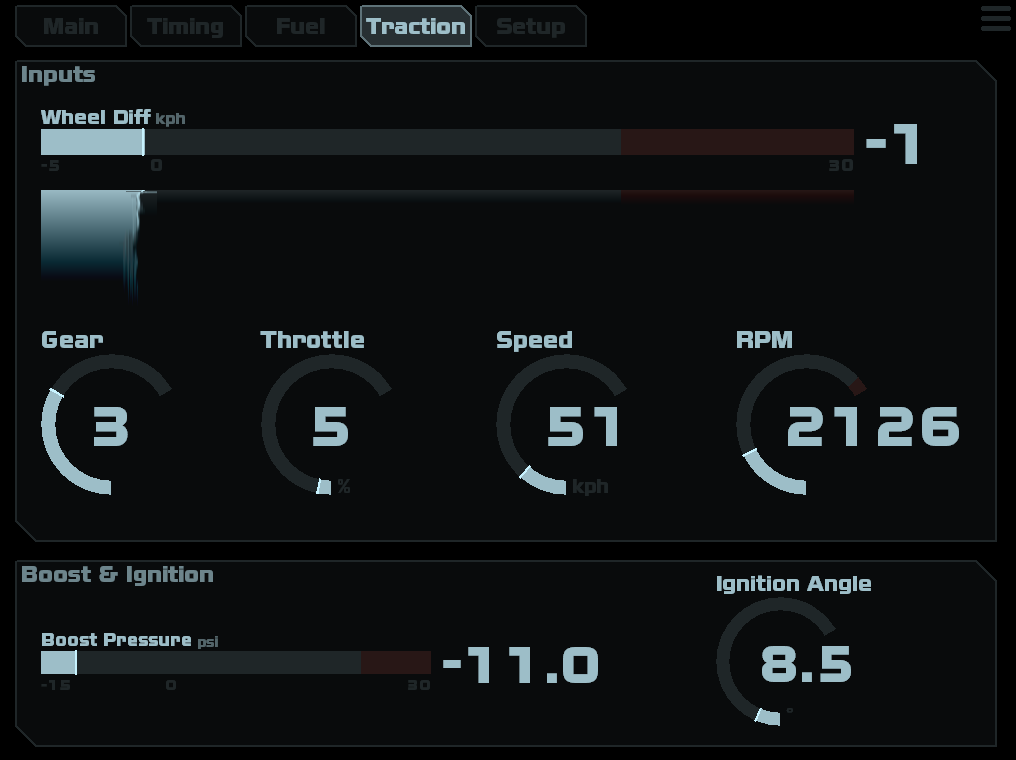

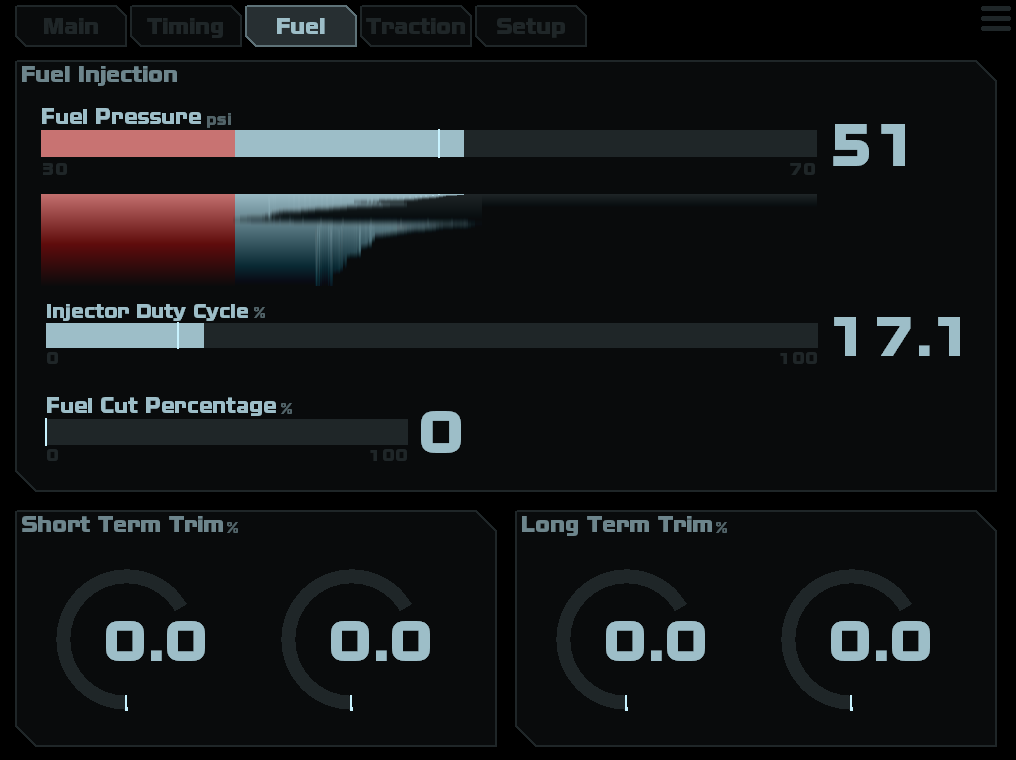

Gauges and tabs can be added/moved and rearranged at will in the car

Peak hold on high throttle

Low pass data filters

Recent value graphs

Many gauge types

Named boarders to group gauges

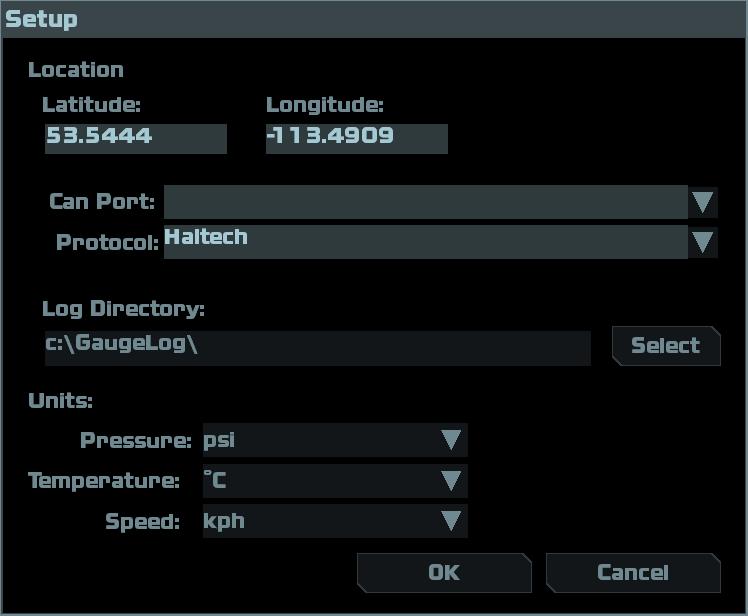

Selectable units

Works with any CAN data from any ECU

Simple data configuration file

Prebuilt config for Haltech, Link, AEM, Motec, and Megasquirt. More coming soon.

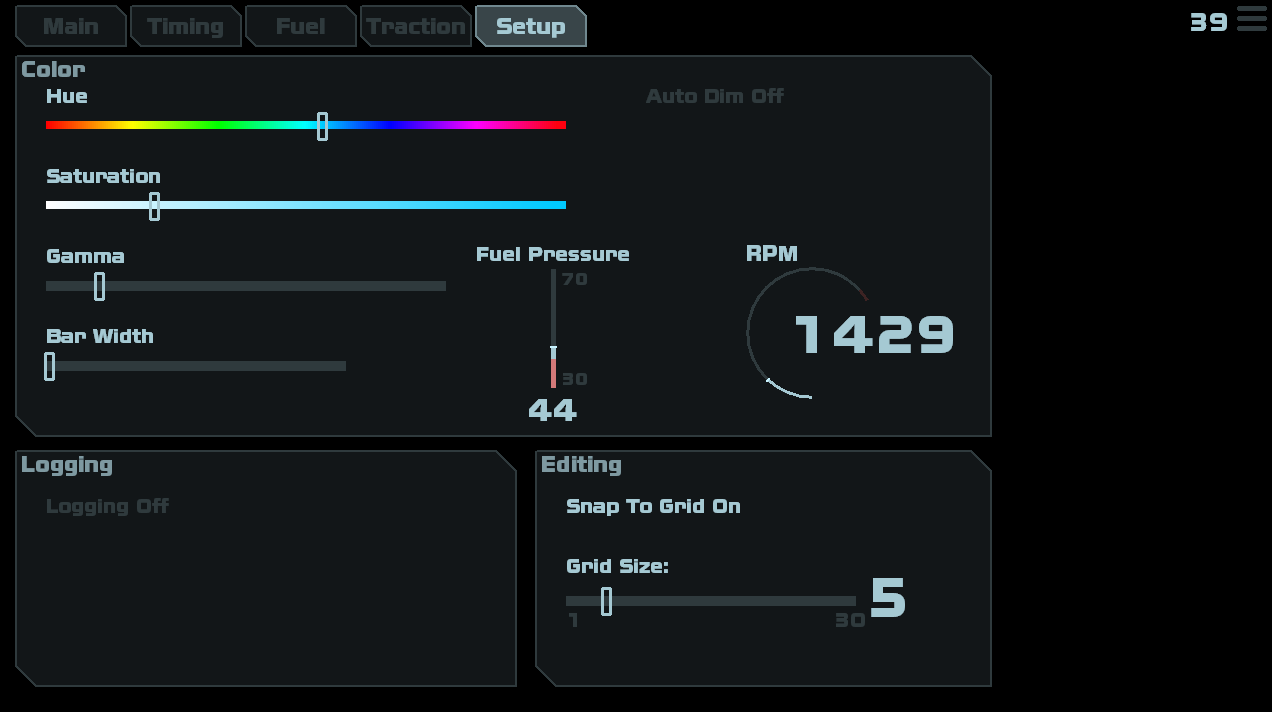

Adjustable colors, saturation, and gamma

Logging records the full data on the can bus for later and auto cleans up files

Auto dim on local sunrise and sunset times to fade the screen

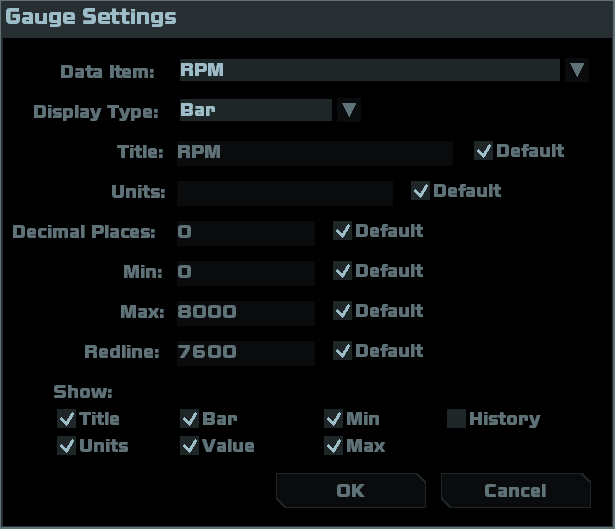

Control decimal places, min, max, and redline values

Override data names and unit text

Show or hide individual gauge elements

High definition HDMI output, plus standard composite video

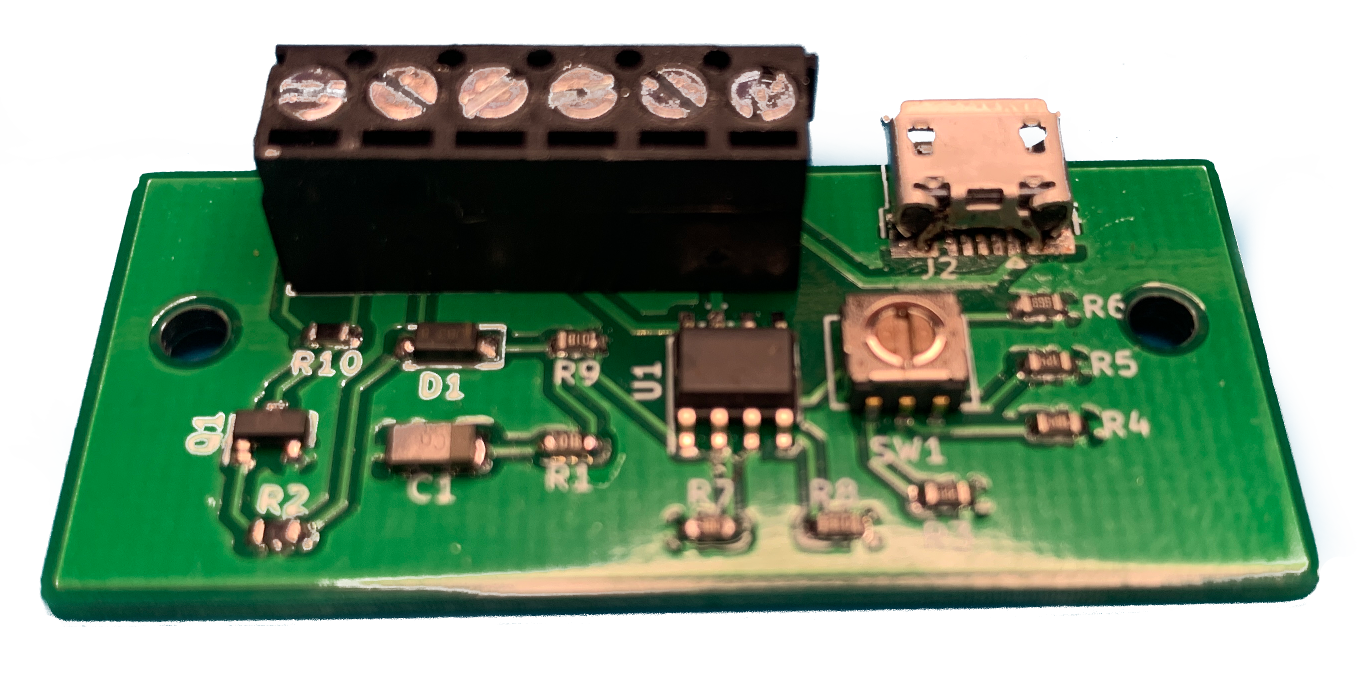

Auto clean shutdown with less than 1uA off current draw

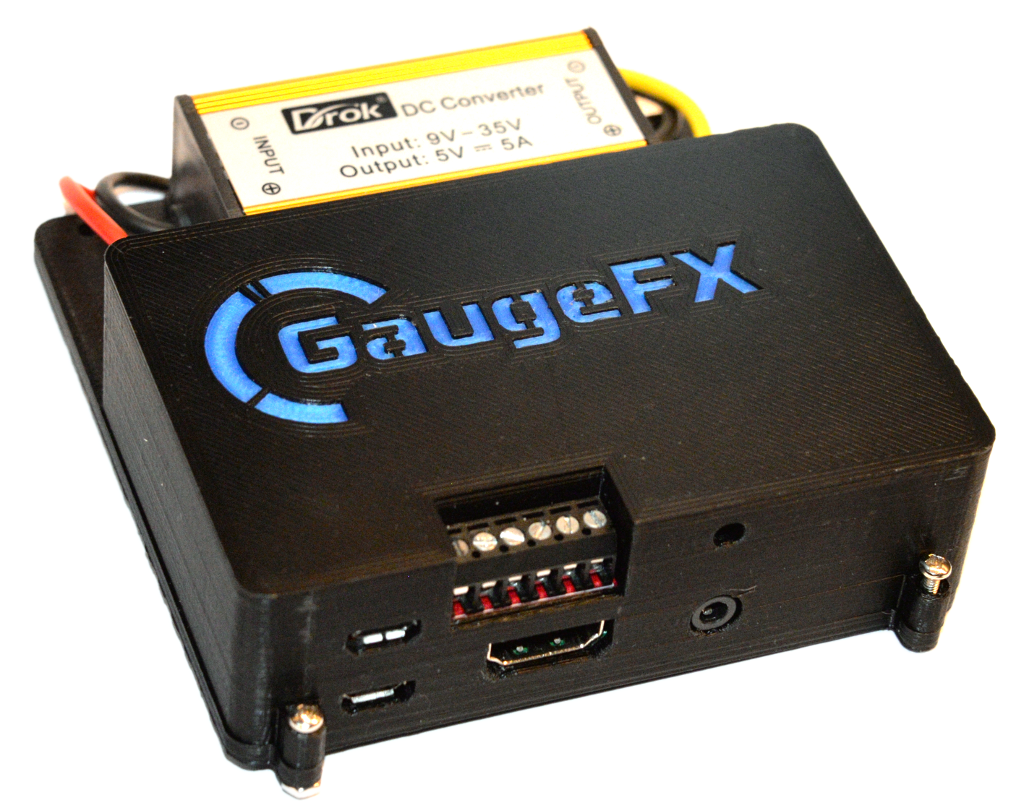

Runs on open hardware, Raspberry Pi 3's

Also available as Windows software for car PCs

Auto transfer data logs to a USB memory stick

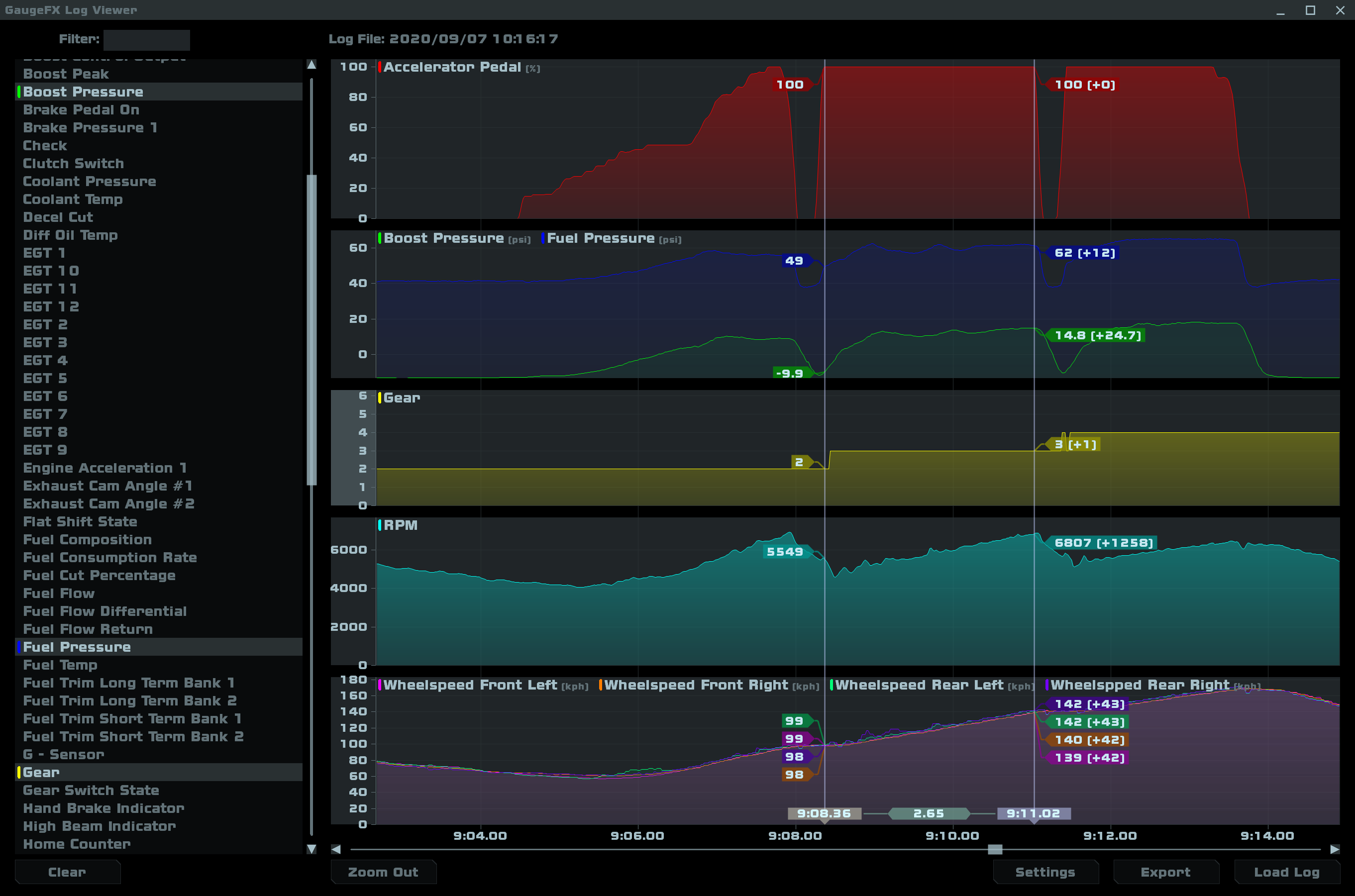

View and export data logs in Windows log viewer

All data is logged, even without a live gauge

Easily select and overlay data, measure with two cursors and export to csv

GaugeFX installed and running in a Haltech twin turbo 350Z

Touch screen installed in factory Nav location

Automatic powered opening and closing cover

Live display example with editing demo

Log viewer demo
